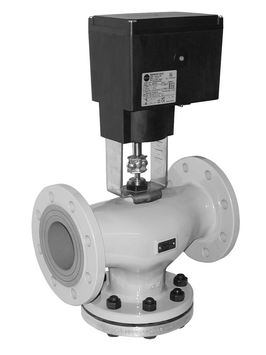

3260 - electric - DIN
Globe valve
VALVE STYLE
Globe valve
USAGE
- Low-pressure service
- Throttling service
VERSION
DIN
MEDIUM TEMPERATURE
5
to 150 °C /
41
to
302 °F
SUPPLY
Electric
VALVE SIZE
DN 65
to
DN 150
PRESSURE RATING
PN 16
LINING
without
Special features
- Consisting of globe valve and actuator
Accessories
- Type 2 NI Strainer
Options
- Special version for oils
3260 - electric - DIN can be combinated with the following actuations:
Special features:
- SAM DIGITAL READY
- Linear actuator with 15 mm or 30 mm rated travel
- 15 mm version optionally with fail-safe action (actuator stem retracts or extends)
- Optionally three-step version or with digital positioner
- Optionally with integrated yoke or ring nut including the necessary stem connecting parts
- Synchronous motor with maintenance-free planetary gear
- Stepper motor with maintenance-free gearing
- All function settings performed using a rotary pushbutton on the actuator
- Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software
