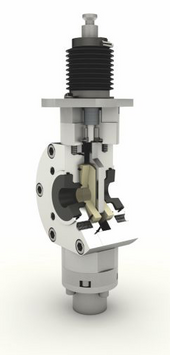

SSC22 - pneumatic - ANSI
Sliding disk
VALVE STYLE
Sliding disk
USAGE
- On/off service
- Throttling service
VERSION
ANSI
MEDIUM TEMPERATURE
-10
to 310 °C /
14
to
590 °F
SUPPLY
Pneumatic
VALVE SIZE
NPS ½
to
NPS 2½
PRESSURE RATING
Class 150
to
Class 300
LINING
Ceramic
Special features
- Sliding disk valves with ceramic seal system and ceramic lining
- TA Luft packing
Accessories
- Positioners
Options
- High-temperature version up to 450 °C
- Light-weight version for on/off service only, without anti-wear liners
- Packing
- Seal gas connection
- Material options for seals as well as different ceramic materials
SSC22 - pneumatic - ANSI can be combinated with the following actuations:
Special features:
- Single-acting linear actuator with rolling diaphragm and internal springs
- Diaphragm areas from 120 to 750 cm²
- Direct attachment of accessories on additional yoke with concealed travel pick-off
- Low overall height
- Powerful thrust at high stroking speed
- Low friction
- Various bench ranges by varying the number of springs or their compression
- No special tools required to change the bench range or reverse the direction of action (also version with handwheel)
